ARRMA MOJAVE 1/7 DESERT TRUCK REVIEW

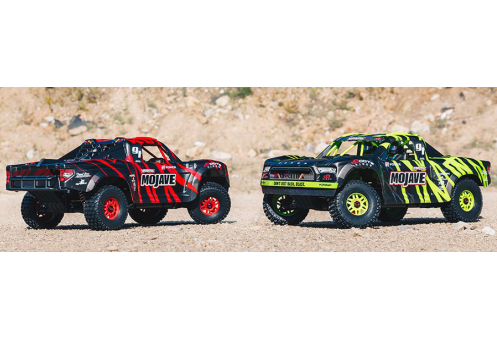

This is ARRMA’s first 1/7th Scale off-road model. Two color are available:GREEN/BLACK & RED/BLACK



Form Arrma:

1.Introduction:

Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale brushless MOJAVE™ 6S BLX Desert Truck. Designed Fast and Designed Tough, it's ready for extreme performance right out of the box, whether you're blasting through coastal sand dunes or thrashing across concrete sidewalks. The MOJAVE™ 6S BLX has the muscle to overcome almost anything in its path. Its 2050Kv brushless motor and 4S/6S brushless ESC provide the potential for competition-crushing speeds. The MOJAVE™ 6S BLX also comes factory-equipped for incredible handling and precise control, with a high-quality Spektrum™ 2.4GHz radio system, durable metal gear servo, and dBoots® FORTRESS tires that find solid traction on a wide range of surfaces. The multi split-spoke wheels are color-coordinated with the matte and gloss finished desert truck body, which features realistic cockpit details.





2.Features

ARRMA's first 1/7th Scale off-road model

Ready-to-run

Desert Truck styling

Brushless power

6S LiPo capable

Metal gears

60+ MPH (95km/h) speeds achievable in optimum conditions on 6S LiPo with optional included pinion gear

Anodized aluminum chassis

Strong composite chassis side pods

Center brace for maximum durability

Center roll hoop interfaces with body roll cage for enhanced body durability

Nerf bars for body and side impact support

Realistic, detailed front and rear bumpers for impact protection

Independent suspension for superior handling

Flexible front bumper valance

Heavy-duty suspension arms with red-anodized aluminum strengthening cap

Oil-filled adjustable shocks

Black-anodized aluminum front and rear shock towers

Durable steel driveshafts

Heavy-duty drivetrain

All-metal diff outdrives and gearbox internals

Never-loose red aluminum servo saver

Never-pop ball ends

4-Bolt center diff removal

Easy-access sliding motor mount

Super-durable wheel hubs for increased strength

Color-coordinated multi split-spoke wheels

Multi-terrain dBoots® FORTRESS tires

Multi-finish matte and gloss body

Realistic cockpit detail

Ultra-detailed decals

Color coordinated protective roll cage and roof rails





3.Spektrum™ STX2® 2.4GHz Radio Features

Ergonomic steering wheel for precise control in all conditions

Easily adjustable trim dials for personalized handling set-up

Lightweight and ergonomic design for long bashing sessions

SRX200 3-channel FHSS receiver

ADS-15M waterproof* 15kg-cm metal-geared servo (195 oz-in @ 6V)

* For details on waterproof standards, please refer to the product instruction manuals.



4.Overview

When you're heading into the rough with your 1/7 scale brushless MOJAVE™ 6S BLX Desert Truck RTR, you can be confident you'll have the speed and strength needed to make it through. The tough-as-nails anodized aluminum chassis has been reinforced with a center brace for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to an independent suspension with bump-soaking oil-filled shocks, the truck handles equally well over wicked and well-travelled tracks.

The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE™ 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the dial goes up to unbeatable — the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just four bolts.

Multi-terrain dBoots® tires on multi split-spoke wheels give your MOJAVE™ 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.

The ready-to-run MOJAVE™ 6S BLX Desert Truck comes with a Spektrum™ STX2® 2.4GHz radio whose lightweight, comfortable design is ideal for long bashing sessions. The ergonomic steering wheel gives you precise control, and easily adjustable trim dials make it easy to tune the handling to your personal touch.



5.Needed to Complete

1) AA Batteries

2) 4S or 6S LiPo Battery

3) LiPo Compatible Charger

4) LiPo Charging Bag or Case



Here we recommend the Ovonic  7600mAh 3S 50C LiPo and 5200mAh 3S 50C LiPo

with EC5 plug. You can use them x2 to run this car.



6.What's in the Box?

1) ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR with:

2) ARRMA® BLX 185 ESC 4S/6S with IC5™ Connectors (installed, EC5™ compatible)

3) ARRMA® BLX4074 2050Kv Brushless Motor (installed)

4) Spektrum™ SRX200 3-Channel 2.4GHz FHSS Receiver (installed)

5) ARRMA® ADS-15M Metal-Geared Servo (installed)

6) Spektrum™ 2.4GHz STX2® FHSS Transmitter

7) Product Manual





7.PARTS





BRACE FOR IMPACT

The aluminum center brace maximizes chassis durability.





DETAILED FRONT & REAR BUMPERS

Provides superior impact protection without sacrificing aesthetics.





LONG RANGE

Independent suspension with a long travel range for superior handling





FROM STRENGTH TO STRENGTH

Suspension includes red anodized aluminum strengthening cap with pivot ball geometry.





ADDITIONAL BODY COLOR OPTION

Silver and red body option available for those wanting a different look and quick, easy way to customize their bashing experience.





COLOR COORDINATED

Roof rails and roll cage parts that match each other and also match any of the 3 body styles.







REALISTIC DETAILS

The 1/7 MOJAVE Desert Truck comes with ultra detailed decals and molded-in accessories for added large scale realism .





BLX185 ESC

Waterproof and dustproof design *

150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)

Fitted with reliable IC5™ connectors (EC5™ compatible)

Integrated fan for reduced heat during extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch and brake settings

* For details on waterproof standards, please refer to the product instruction manuals.



BLX4074 2050Kv BRUSHLESS MOTOR

Beautifully etched aluminum can

4-pole construction for smooth and consistent power

Gold bullet connectors for reliable and efficient connection

Finned motor can for increased heat dissipation

Super strong 5mm shaft





SPEKTRUM STX2 RADIO SYSTEM

Complete 2.4GHz radio system including a 2Ch waterproof receiver *

Built-in 3-position throttle limiter

Steering & throttle rate & trim adjustments with throttle and steering reversing

FHSS 2.4GHz protocol** offers extended range and interference free performance

* For details on waterproof standards, please refer to the product instruction manuals.
** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol



But according to some hobbyists, STX2 radio this is not good just not good enough for a 6s capable truck. So you may need to buy a DSMR receiver to bind to a Higher end Spektrum remote.



ADS-15M SERVO

Strong metal gears used throughout

Waterproof and dustproof case *

25 tooth output spline

Torque: 14kg-cm @6V

Speed: 0.16sec/60degree @6V

Dimensions: 40x38x20mm (Industry standard size)

* For details on waterproof standards, please refer to the product instruction manuals.





This video from ARRMARC to see how the car ran:
